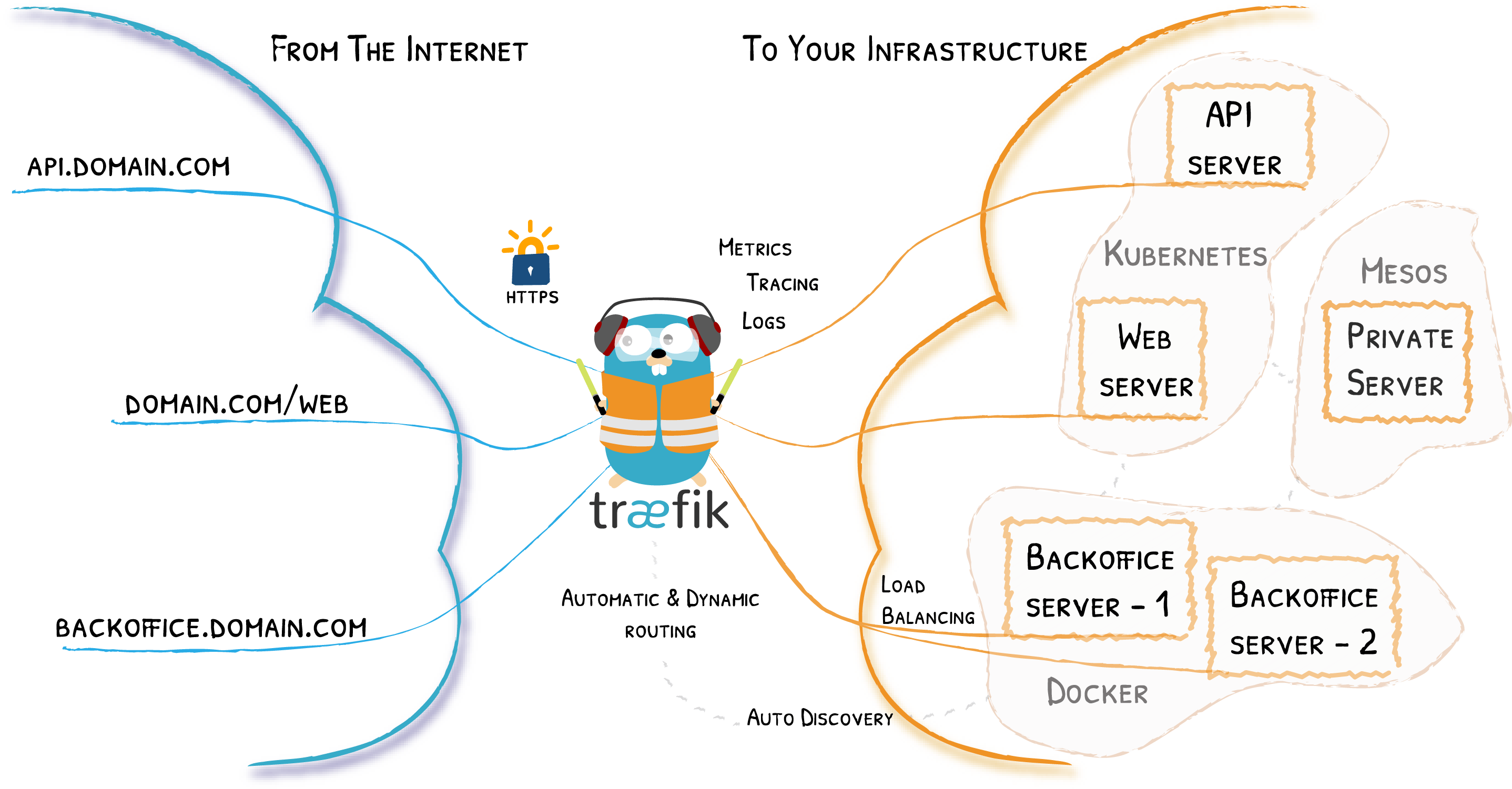

Traefik (pronounced traffic) is a modern HTTP reverse proxy and load balancer that makes deploying microservices easy. Traefik integrates with your existing infrastructure components (Docker, Swarm mode, Kubernetes, Consul, Etcd, Rancher v2, Amazon ECS, …) and configures itself automatically and dynamically. Pointing Traefik at your orchestrator should be the only configuration step you need.

Instructions

Pre-requisites

Registered domain name and control over DNS records
Docker & Docker Compose
Watchtower
Docker Socket Proxy
Cloudflare API Token

Folder Structure

Create following file/folder structure:

./traefik
├── data
│	├── logs
│	│	├── access.log
│	│	└── traefik.log
│   ├── acme.json
│   ├── config.yml
│   └── traefik.yml
├── cf_api_token
├── .env
└── docker-compose.yml

Warning
acme.json requires a permission value of 600. Make sure to set this using:
chmod 600 acme.json

Docker Network

Create our docker network. Our applications will communicate over this network.

docker network create proxy

.env

Info

Generating a password is only necessary if using the dashboard. In production use this is generally not recommended. If using the dashboard don’t expose it to the internet or look into a proper authentication service e.g. Zitadel, Authelia, Authentik, or Keycloak. However, it is useful for testing if our staging certificate works when setting up for the first time.

Generate a password using the following command:

echo $(htpasswd -nB user) | sed -e s/\\$/\\$\\$/g

Change the example password with your generated password:

.env

DDN=example.com # change to your domain name
TRAEFIK_DASHBOARD_CREDENTIALS=user:$$2y$$05$$lSaEi.G.aIygyXRdiFpt7OqmUMW9QUG5I1N.j0bXoXxIjxQmoGOWu # swap with generated password

Cloudflare API Token

Generate an API token for your zone here.

cf_api_token.txt

PASTE_TOKEN_HERE

Docker Compose

docker-compose.yml

secrets:
  cf_api_token:
    file: ./cf_api_token.txt

services:
  traefik:
    image: traefik:v3.1
    container_name: traefik
    restart: unless-stopped
    security_opt:
      - no-new-privileges:true
    networks:
      - proxy
      - socket
    ports:
      - 80:80
      - 443:443
      # - 443:443/tcp # Uncomment if you want HTTP3
      # - 443:443/udp # Uncomment if you want HTTP3
    environment:
      CF_DNS_API_TOKEN_FILE: /run/secrets/cf_api_token # note using _FILE for docker secrets
      TRAEFIK_DASHBOARD_CREDENTIALS: ${TRAEFIK_DASHBOARD_CREDENTIALS}
    secrets:
      - cf_api_token
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - ./data/traefik.yml:/traefik.yml:ro
      - ./data/acme.json:/acme.json
      - ./data/config.yml:/config.yml:ro
    labels:
      # default traefik labels
      - traefik.enable=true
      # traefik basicauth
      - traefik.http.middlewares.traefik-auth.basicauth.users=${TRAEFIK_DASHBOARD_CREDENTIALS}
      - traefik.http.routers.traefik-secure.middlewares=traefik-auth
      # traefik customheaders
      - traefik.http.middlewares.sslheader.headers.customrequestheaders.X-Forwarded-Proto=https
      # traefik https
       - traefik.http.routers.traefik-secure.entrypoints=https
       - traefik.http.routers.traefik-secure.tls=true
       - traefik.http.routers.traefik-secure.rule=Host(`traefik.${DDN}`)
       - traefik.http.routers.traefik-secure.service=api@internal
      # traefik certificate setup
      - traefik.http.routers.traefik-secure.tls.certresolver=cloudflare
      - traefik.http.routers.traefik-secure.tls.domains[0].main=${DDN}
      - traefik.http.routers.traefik-secure.tls.domains[0].sans=*.${DDN}
      # traefik additional middlewares
      # watchtower
      - com.centurylinklabs.watchtower.enable=true

networks:
  proxy:
    external: true
  socket:
	external: true

traefik.yml

Traefik configuration file.

traefik.yml

#API
api:
  dashboard: true # set to false after first setup
  debug: true

#LOGS
log:
  filePath: logs/traefik.log
  level: INFO
accessLog:
  filePath: logs/access.log
  bufferingSize: 100
  filters:
    statusCodes:
      - "204-299"
      - "400-499"
      - "500-599"

#ENTRYPOINTS
entryPoints:
  http:
    address: :80
    forwardedHeaders:
      trustedIPs: &trustedIps
      #Local Subnets
        - "127.0.0.1/32"
        - "10.0.0.0/8"
        - "172.16.0.0/12"
        - "192.168.0.0/16"
      #Cloudflare Subnets
        - "173.245.48.0/20"
        - "103.21.244.0/22"
        - "103.22.200.0/22"
        - "103.31.4.0/22"
        - "141.101.64.0/18"
        - "108.162.192.0/18"
        - "190.93.240.0/20"
        - "188.114.96.0/20"
        - "197.234.240.0/22"
        - "198.41.128.0/17"
        - "162.158.0.0/15"
        - "104.16.0.0/13"
        - "104.24.0.0/14"
        - "172.64.0.0/13"
        - "131.0.72.0/22"
      #EOL
    http:
      redirections:
        entryPoint:
          to: https
          scheme: https
  https:
    address: :443
    forwardedHeaders:
      # Reuse list of Cloudflare Trusted IP's above for HTTPS requests
      trustedIPs: *trustedIps
    http:
      tls:
        certResolver: cloudflare
        domains:
          - main: 'vanlook.dev'
          - sans:
              - '*.vanlook.dev'
              - '*.home.vanlook.dev' # added san for internal home use

serversTransport:
  insecureSkipVerify: true

#PROVIDERS
providers:
  docker:
    watch: true
    network: proxy
    #endpoint: "unix:///var/run/docker.sock" # docker socket (default)
    endpoint: "tcp://socket-proxy:2375" # docker socket proxy (recommended)
    exposedByDefault: false
  file:
    filename: /config.yml
    watch: true

#CERT RESOLVERS
certificatesResolvers:
  cloudflare:
    acme:
	  # caServer: https://acme-v02.api.letsencrypt.org/directory # prod (default)
      caServer: https://acme-staging-v02.api.letsencrypt.org/directory # staging
      email: youremail@example.com
      storage: acme.json
      dnsChallenge:
        provider: cloudflare
        resolvers:
          - "1.1.1.1:53"
          - "1.0.0.1:53"

config.yml

Used for setting static routes, services, and middlewares.

config.yml

http:
 #region routers
  routers:
    proxmox:
      entryPoints:
        - "https"
      rule: "Host(`proxmox.home.example.com`)"
      middlewares:
        - default-headers
      tls: {}
      service: proxmox

#endregion
#region services
  services:
    proxmox:
      loadBalancer:
        servers:
          - url: "https://192.168.50.2:8006"
        passHostHeader: true
#endregion
  middlewares:
    default-headers:
      headers:
        frameDeny: true
        browserXssFilter: true
        contentTypeNosniff: true
        forceSTSHeader: true
        stsIncludeSubdomains: true
        stsPreload: true
        stsSeconds: 15552000
        customFrameOptionsValue: SAMEORIGIN
        customRequestHeaders:
          X-Forwarded-Proto: https

    default-whitelist:
      ipAllowList:
        sourceRange:
        - "10.0.0.0/8"
        - "192.168.0.0/16"
        - "172.16.0.0/12"

    secured:
      chain:
        middlewares:
        - default-whitelist
        - default-headers

Start the docker-compose stack

docker compose up -d

Switch to production acme endpoint

traefik.yml

...
#CERT RESOLVERS
certificatesResolvers:
  cloudflare:
    acme:
	  caServer: https://acme-v02.api.letsencrypt.org/directory # prod (default)
      # caServer: https://acme-staging-v02.api.letsencrypt.org/directory # staging
      email: youremail@example.com
      storage: acme.json
      dnsChallenge:
        provider: cloudflare
        resolvers:
          - "1.1.1.1:53"
          - "1.0.0.1:53"

Also clean out the staging certificates:

vim data/acme.json

Tip
It sometimes doesn’t want to use the cleaned out file. If this happens you just have to recreate the file.
cd data
rm acme.json
touch acme.json
chmod 600 acme.json

Restart the stack

docker compose restart

Exposing other workloads using traefik

Add following labels to your docker-compose file:

docker-compose-example.yml

...
	labels:
      # traefik
      - traefik.enable=true
      - traefik.http.services.example.loadbalancer.server.port=80 # this depends on what port the service is running on
      - traefik.http.routers.example.entrypoints=https
      - traefik.http.routers.example.tls=true
      - traefik.http.routers.example.rule=Host(`example.${DDN}`)
...

Tip

Don’t forget to change the router names to whatever the service is you are running. Also change the url to whatever you want.

Option 1

docker-compose-example.yml

...
	labels:
	   # traefik
	   - traefik.enable=true
       - traefik.http.services.nginx.loadbalancer.server.port=80 # this depends on what port the service is running on
       - traefik.http.routers.nginx.entrypoints=https
       - traefik.http.routers.nginx.tls=true
       - traefik.http.routers.nginx.rule=Host(`nginx.${DDN}`)
...

Option 2

docker-compose-example.yml

...
	labels:
	   # traefik
	   - traefik.enable=true
       - traefik.http.services.${TRAEFIK_SERVICE_NAME}.loadbalancer.server.port=${TRAEFIK_SERVICE_PORT}
       - traefik.http.routers.${TRAEFIK_SERVICE_NAME}.entrypoints=https
       - traefik.http.routers.${TRAEFIK_SERVICE_NAME}.tls=true
       - traefik.http.routers.${TRAEFIK_SERVICE_NAME}.rule=Host(`${TRAEFIK_HOST}`)
...

.env

TRAEFIK_SERVICE_NAME=nginx
TRAEFIK_SERVICE_PORT=80
TRAEFIK_HOST=nginx.example.com

What’s next

Traefik-kop (traefik-proxy)
